• AT Family

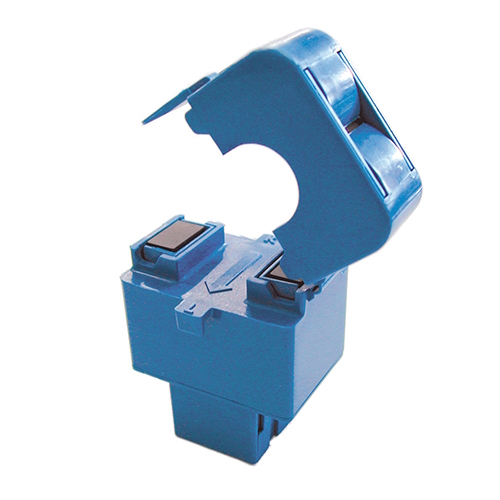

    Compact and cost-effective split core transducers for measuring AC currents.

    Products

    AT

    AT

    Main characteristics:

    • Current transformer and RMS circuit in a single case
    • Choice of primary current ranges: 5 to 150A RMS
    • Choice of standard output types: 4-20mA, 0-5V or 0-10V
    • Accuracy: <2% of nominal primary current
    • Bandwidth: 50/60 Hz

    Features:

    • Self-powered and loop-powered versions
    • Operating range: -20°C to +60°C
    • Isolation test voltage: 3.5kV RMS / 50Hz / 1min
    • Sensing aperture: 16 mm (for non-contact measurement)
    • Dimensions: 44.5 x 67 x 36.5 mm
