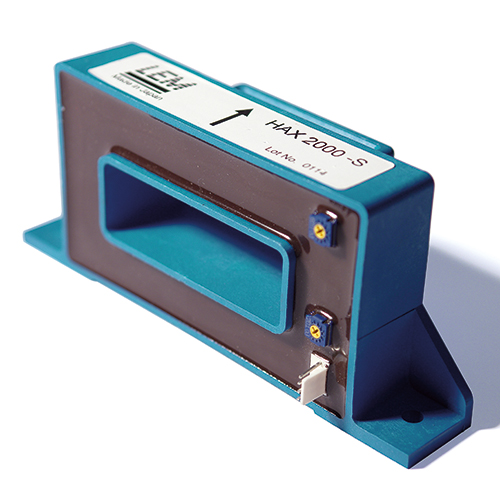

HAX
Compact current transducers for AC and DC currents from 500 to 2500A. Instantaneaous voltage output +/- 4 V. Bipolar power supply +/- 15 V. Bandwidth: DC...25 kHz
Model details
HAX 3000-S/SP23
- Series
-
HAX
- Measurement
-
Current
- Nominal Value
-
3000 A
- Measuring Range
-
7500 A
- Second. Nominal Signal
-
Voltage
- Second. Nominal Signal Value
- Instantaneous 4 V
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Bipolar
- Supply Voltage Range
- 15 - 15 V
- Accuracy
- 1 %
- Op. Temperature
- -40 °C / 85 °C
- Technology
-
Open loop Hall effect
- Mounting
-
Panel
FRONT
BACK
LEFT
RIGHT
