HAZ

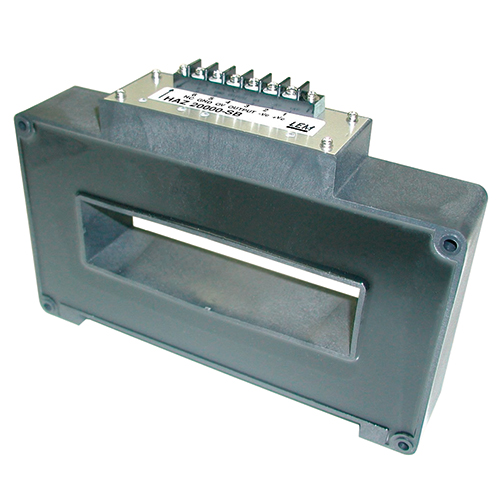

Compact current transducers for AC and DC currents from 4000 to 20000A.
HAZ - Current sensors
The HAZ current sensor family is exclusively designed for measuring DC, AC, or pulsed currents while ensuring galvanic isolation between the primary circuit and the secondary circuit.
Within the HAZ family, you have the option of signal conditioning or obtaining instantaneous outputs. These sensors operate effectively with a bipolar power supply of +/- 15V and feature secondary connections using the Fujicon F2023A connector (Terminals).
HAZ current sensors are built upon open-loop Hall effect technology, making them well-suited for a range of applications. They are versatile enough to be employed in both industrial and railway settings, including use in fixed installations and onboard trains and locomotives.
HAZ – Features and benefits
Features
- Hall effect measuring principle
- Galvanic separation between primary and secondary circuit
- Insulation voltage 17 kV RMS/50 Hz/1 min
- Low power consumption
- Package in PBT meeting UL 94-V0
- Instantaneous current or voltage output
Main characteristics
- Easy installation
- Small size and space savings
- Only one design for wide current rating range
- High immunity to external interference
Typical applications
The HAZ sensors are specifically designed for the industrial and railway domains. These applications include:
- AC variable speed drives and servo motor drives
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies (SMPS)
- Power supplies for welding applications
- Single or three phase inverters
- Propulsion and braking choppers
- Propulsion converters
- Auxiliary converters
- Battery chargers
LEM HAZ – Download & Technical Characteristic
| Product | Document | Primary nominal RMS voltage | Supply Voltage range | Op. Temperature |
|---|---|---|---|---|
| HAZ 4000-SB | 4000 A | 15 to 15 | -25 to 85°C | |
| HAZ 4000-SBI/SP1 | 4000 A | 15 to 15 | -25 to 85°C | |
| HAZ 6000-SB | Datasheet 3D |
6000 A | 15 to 15 | -25 to 85°C |
| HAZ 6000-SBI | Datasheet 3D |
6000 A | 15 to 15 | -25 to 85°C |
| HAZ 10000-SB | Datasheet 3D |
10000 A | 15 to 15 | -25 to 85°C |
| HAZ 10000-SBI | Datasheet 3D |
10000 A | 15 to 15 | -25 to 85°C |
| HAZ 10000-SBI/SP1 | Datasheet 3D |
10000 A | 15 to 15 | -25 to 85°C |
| HAZ 12000-SB | Datasheet 3D |
12000 A | 15 to 15 | -25 to 85°C |
| HAZ 12000-SBI | Datasheet 3D |
12000 A | 15 to 15 | -25 to 85°C |
| HAZ 20000-SB | Datasheet 3D |
20000 A | 15 to 15 | -25 to 85°C |
| HAZ 20000-SRI/SP1 | Datasheet 3D |
20000 A | 15 to 15 | -25 to 85°C |
