HMSR DA integrated current sensor with digital output
The first Integrated Current Sensor with Sigma Delta digital output
Video
HMSR DA benefits for your system
? Replaces shunt and digital isolator for reduced cost and footprint
? Produces Sigma Delta bitstream for clean easy to use signal
? Offers efficient performance for servo drives, robotics and other high precision applications
? Produces Sigma Delta bitstream for clean easy to use signal
? Offers efficient performance for servo drives, robotics and other high precision applications
HMSR DA main features
- Sigma Digital bitstream output with 10 MHz clock in or out
- High resolution with an effective number of bits (ENOB) 11 to 13 bits
- Different output modes: Single ended CMOS, Differential RS422, LVDS
- Fast internal OCD of 2 μs

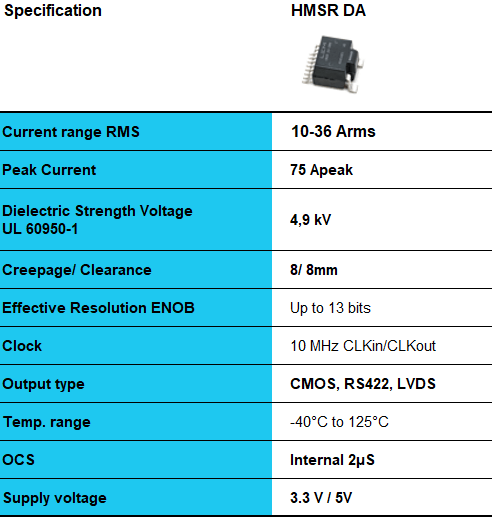

HMSR DA technical facts
