Smart Grid

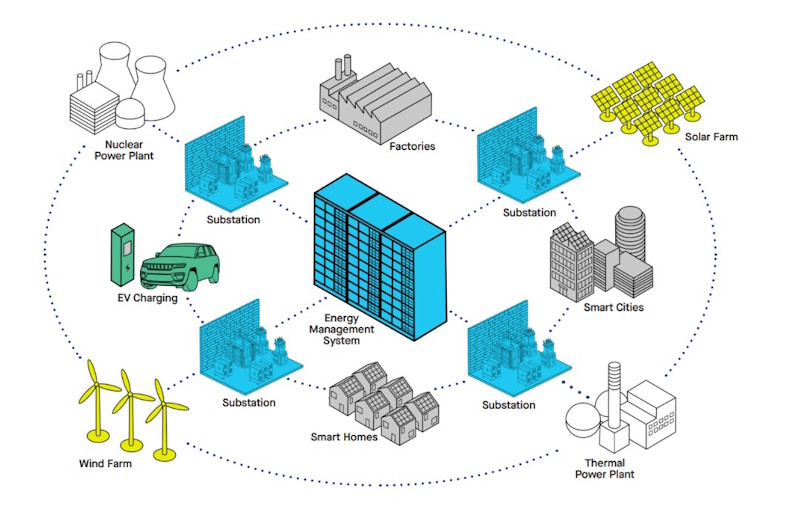

The intelligent electricity network (Smart Grid) is the backbone of the energy system.
Our energy system is amidst a radical transition, as millions of electric vehicles hit the roads and Terawatts of renewable energy capacity are installed in our grids.
Smarter equipment is needed for the Smart Grid to provide reliable integration of intermittent renewable energies and distributed energy resources.
LEM improves the grid by measuring electrical parameters allowing control rooms to automate, monitor remotely and share real-time equipment data.
Main applications for Smart Grid
TYPICAL APPLICATIONS FOR SMART GRID
- Distribution Automation – Fault Detection, Isolation & Restoration

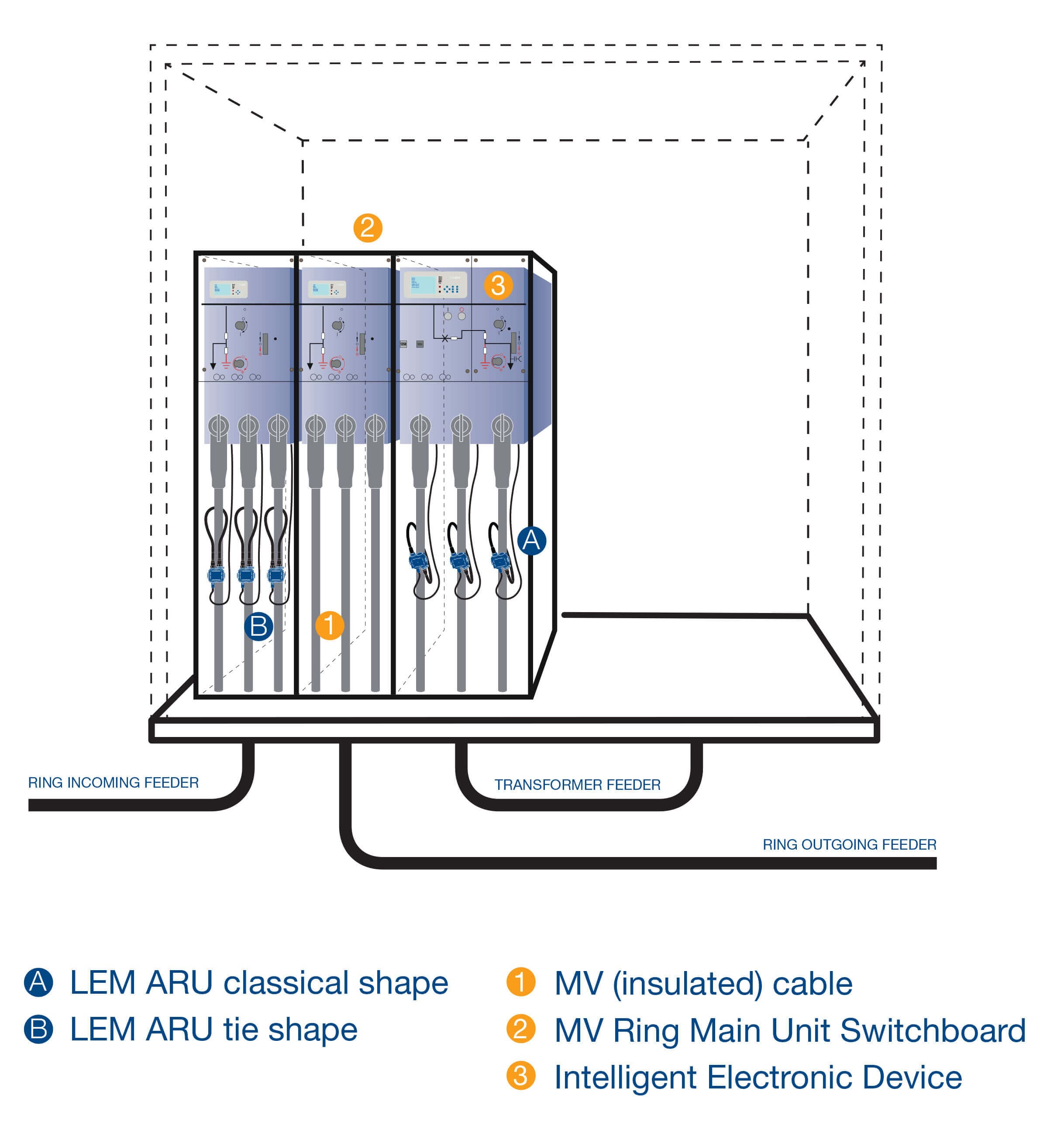

- Grid Monitoring (e.g. Intelligent substations)
- Protection & Safety

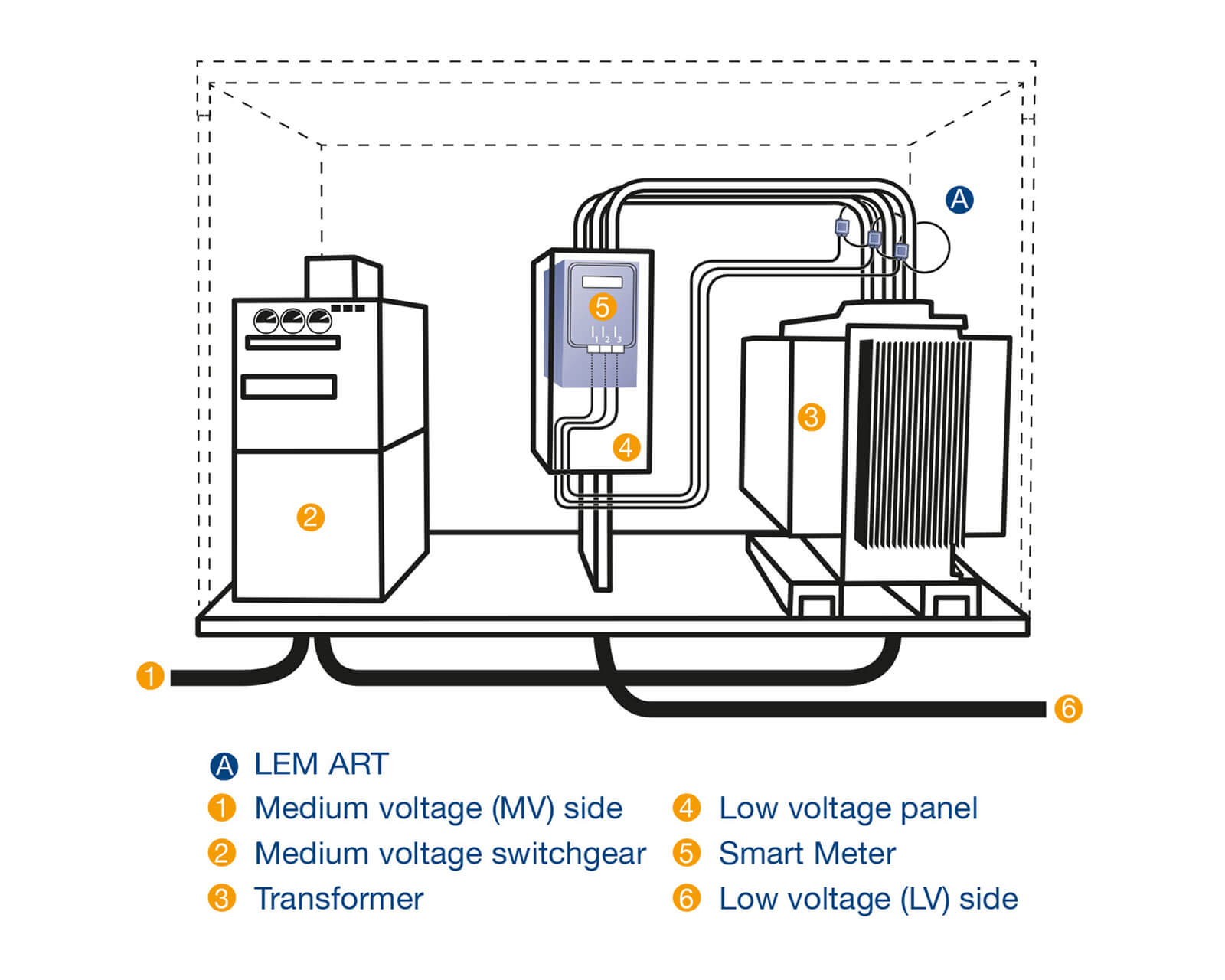

- Distribution Transformer Monitoring
- Distribution Automation – Voltage Control
- Power Quality
?
Products for Smart Grid

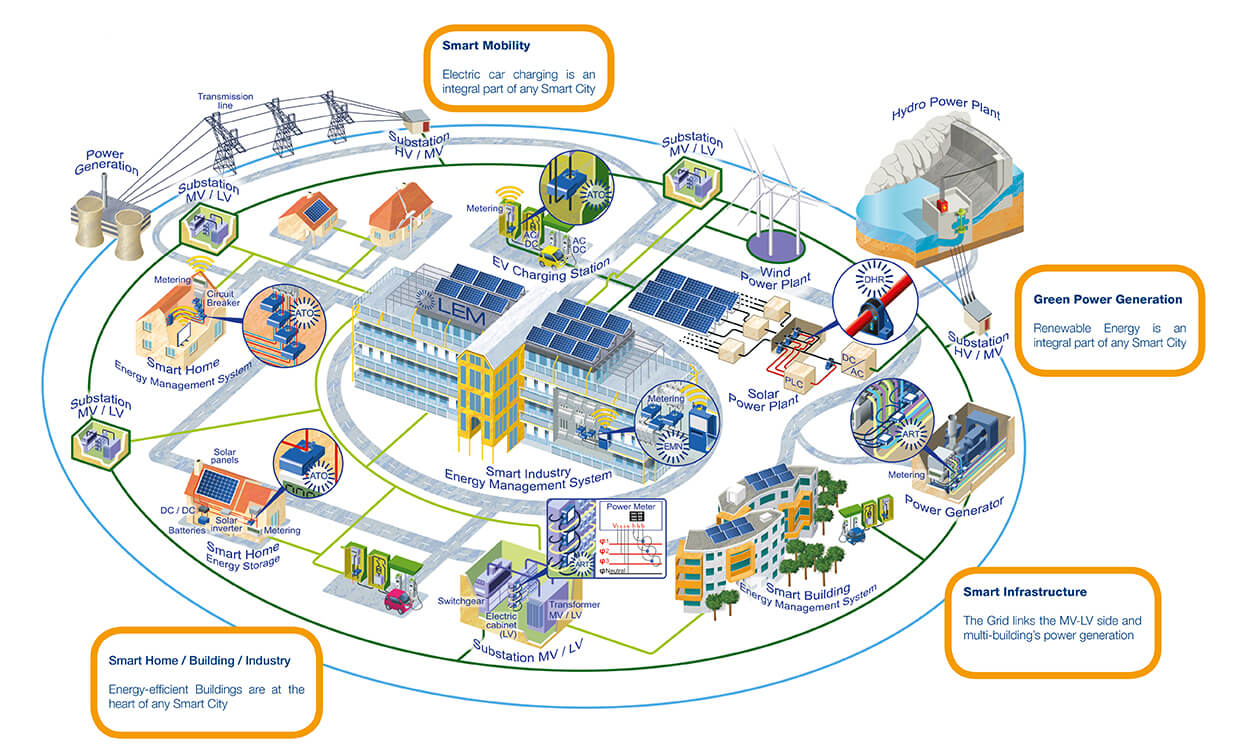

?LEM provides innovative, accurate, reliable, easy-to install, non-intrusive current monitoring sensors for better performance of the grid and smarter cities.

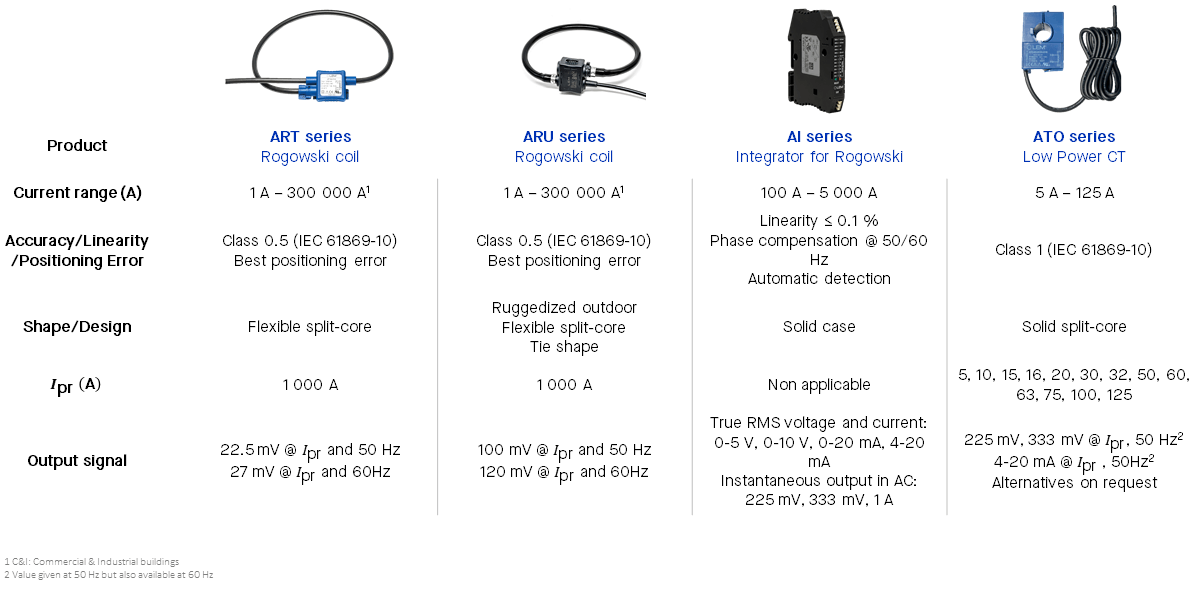

Product List Here

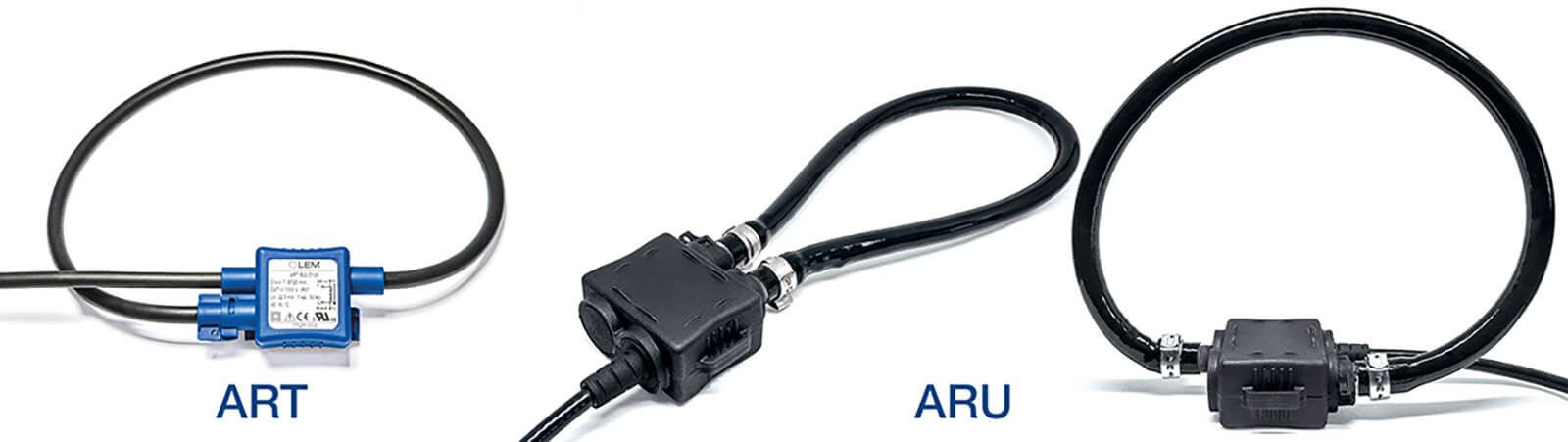

More information on ART here?|?More information on ARU here?|?More information on AI here?|?More information on ATO here
Certificates and standards
Compliance with the highest industry standards
LEM products and processes comply with reference standards in the industry:
? CE marking of LEM transducers in recognition of their electromagnetic compatibility
? IEC standards for automation applications:
- IEC 61869-2,-6,-8, -10, -14, -15 for performances
- IEC 61010-1, -2-030, -2-032, -031 for safety
- IEC 61800-1 & -2 for climatic and mechanical constraints
- IEC 61000-6-2 & -6-3 or IEC 61326-1 for EMC
? RoHS compliant
? ISO TS 16949 certification of all production and development centers (Switzerland and China)
Quality products and services: our priority
Based on our deep knowledge of applications and current measurement technologies, LEM develops both catalog and customized products which can be perfectly tailored to meet your needs in terms of performance, space requirement and cost
SMART GRID ARTICLES

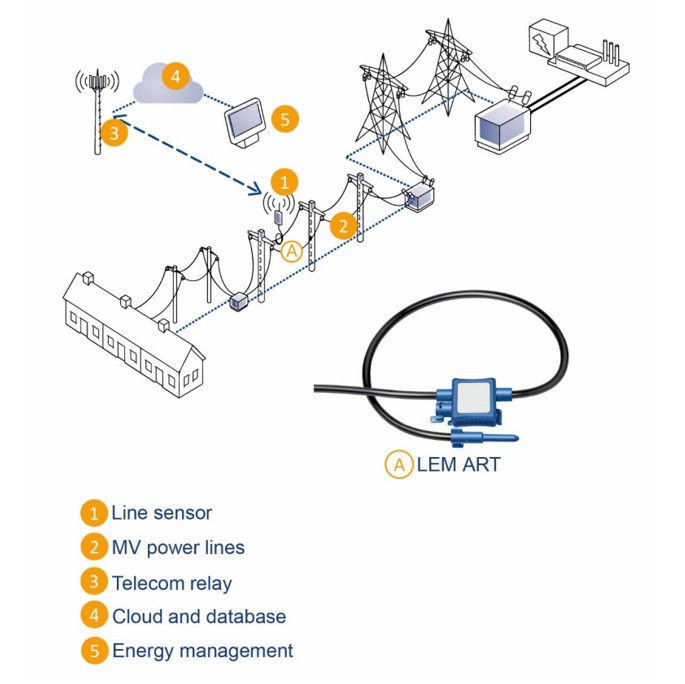

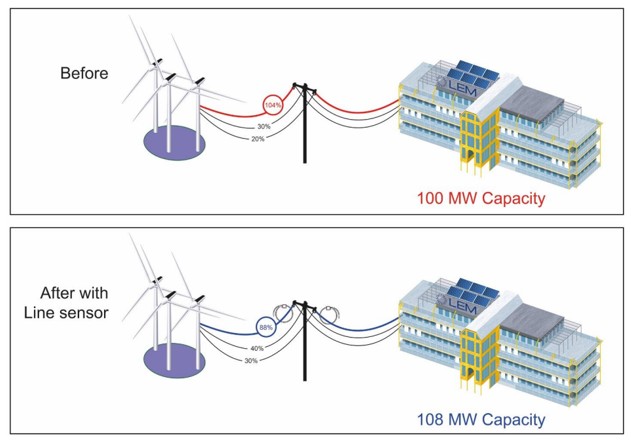

| Distribution Overhead Line Monitoring with LEM’s ART Rogowski coil | Smart Grid Articles | |

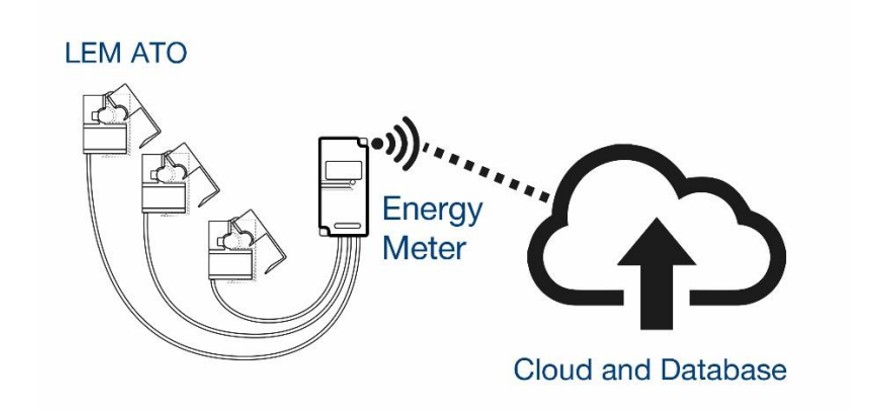

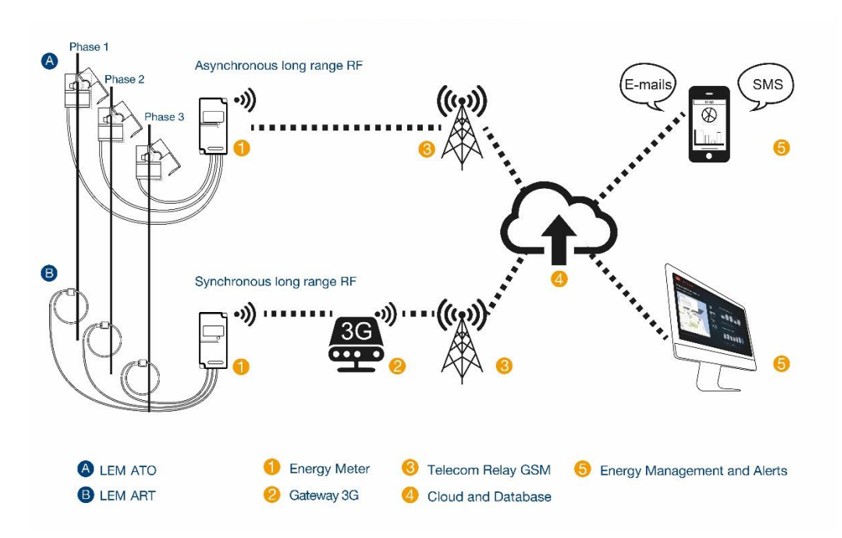

| IoT remote energy monitoring using LEM Split | Smart Grid Articles | |
| Smart Transformer condition monitoring with Smart Meter and Rogowski Coils | Smart Grid Articles |
Related information
| LEM Transducers Generic Mounting Rules | Smart Grid | |
| AC Current Sensing Solutions - Smart Grid Portfolio | Smart Grid | |
| Isolated current and voltage transducers characteristics - applications - calculations (3rd edition) | Smart Grid | |
| Current & voltage transducers for industrial applications | Current & Voltage Transducers For Industrial Applications | |

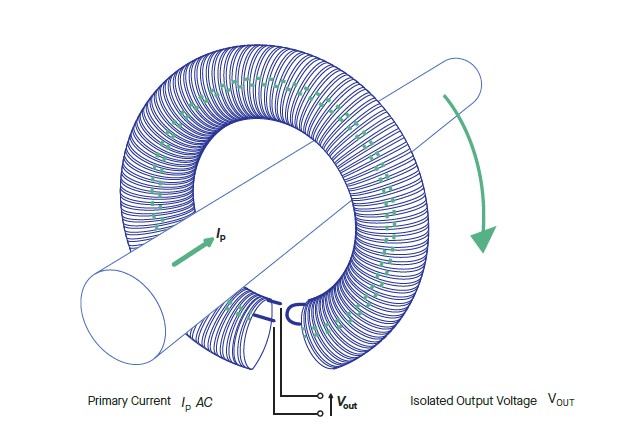

| Design of an integrator for the Rogowski coil | Smart Grid |
Need help with a project?
You have a project in line with that application and want to discuss it with LEM?
Click on the contact button below and our experts will help you find the best solutions for your needs.
