The GXN Series is a LEM integrated current sensor solution engineered for the measurement of AC and DC currents in both industrial and automotive applications. The sensor demonstrates effective rejection of external fields from noisy environments.
A temperature compensation algorithm is incorporated to ensure high accuracy from -40 to 125 °C.
The primary conductor (pins 1 to 8) features low electrical resistance of 0.85 m? which supports optimal performance with minimal power loss.
The GXN Series is designed to measure currents ranging from 10 to 100A and 40Arms continuously.
It also offers an externally settable overcurrent detection for rapid, reliable, and adaptable protection solutions.
Galvanic insulation between the primary and secondary sides eliminates the requirement for supplementary insulation, thereby reducing overall system footprint and cost.

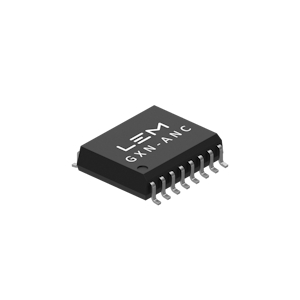

GXN ANC
Key features
- Automotive qualified AECQ 100 Grade 0
- Open loop multi-range current transducer: 10~100A
- Low electrical resistance: 0.85 m?
- Dual supply voltage: 5V or 3.3 V
- Over current detection
- Fixed output with Verf
- High bandwidth: 320kHz
- 1.5us response time
- Galvanic separation between primary and secondary with 8mm of dCI and 8mm of dCp
- Insulated test voltage: 5000V RMS (UL62638)
- Maximum surge current (Isurge): 13kA
- Wide body SOIC16 package
Applications
- Servo and Drive
- UPS
- HVAC Inverters
- Appliances
- Automotive On Board Charger
- DCDC
- Power distribution
TECHNICAL DOCUMENTATION
GXN ANC AT A GLANCE
Product name | Nominal | Current | Nominal | Supply Voltage [Uc] | Ratiometric | Temp. |
|---|---|---|---|---|---|---|
GXN ANC 10-4 30011A | 132 | 10 | 4 | 3.3V | No | -40 to 125°C |
100 | 20 | 8 | 5V | No | -40 to 125°C | |
GXN ANC 20-8 30011A | 66 | 20 | 8 | 3.3V | No | -40 to 125°C |
GXN ANC 25-10 30011A | 52.8 | 25 | 10 | 3.3V | No | -40 to 125°C |
66.67 | 30 | 12 | 5V | No | -40 to 125°C | |
GXN ANC 30-12 31011A | 88 | 30 | 12 | 3.3V | No | -40 to 125°C |
39.6 | 33 | 13 | 3.3V | No | -40 to 125°C | |
50 | 40 | 16 | 5V | No | -40 to 125°C | |
40 | 50 | 20 | 5V | No | -40 to 125°C | |
GXN ANC 66-26 30011A | 20 | 66 | 26 | 3.3V | No | -40 to 125°C |
30.3 | 66 | 26 | 5V | No | -40 to 125°C | |
GXN ANC 80-32 30011A | 16.5 | 80 | 32 | 3.3V | No | -40 to 125°C |
25 | 80 | 32 | 5V | No | -40 to 125°C | |
20 | 100 | 40 | 5V | No | -40 to 125°C | |
GXN ANC 100-40 30011A | 13.2 | 100 | 40 | 3.3V | No | -40 to 125°C |
GXN AND
Key features
- Open loop multi-range current transducer: 10~100A
- Low electrical resistance: 0.85 m?
- Dual supply voltage: 5V or 3.3 V
- Ratiometric output & Fixed output with Verf
- High bandwidth: 240kHz
- 2.2us response time
- Galvanic separation between primary and secondary with 8mm of dCI and 8mm of dCp
- Insulated test voltage: 5000V RMS (UL62638)
- Maximum surge current (Isurge): 13kA
- Wide body SOIC16 package
Applications
- Servo and Drive
- UPS
- HVAC Inverters
- Appliances
- Automotive On Board Charger
- DCDC
- Power distribution
- Solar Inverters
TECHNICAL DOCUMENTATION
GXN AND AT A GLANCE
Product name | Nominal | Current | Nominal | Supply Voltage [Uc] | Ratiometric | Temp. range [°C] |
|---|---|---|---|---|---|---|
66 | 20 | 8 | 3.3V | Yes | -40 to 125°C | |
GXN AND 20-8 50111A | 100 | 20 | 8 | 5V | Yes | -40 to 125°C |
GXN AND 20-8 50011A | 100 | 20 | 8 | 5V | Yes | -40 to 125°C |
GXN AND 25-10 30011A | 52.8 | 25 | 10 | 3.3V | Yes | -40 to 125°C |
GXN AND 30-12 50111A | 66.67 | 30 | 12 | 5V | Yes | -40 to 125°C |
GXN AND 30-12 30111A | 44 | 30 | 12 | 3.3V | Yes | -40 to 125°C |
GXN AND 30-12 30011A | 44 | 30 | 12 | 3.3V | Yes | -40 to 125°C |
GXN AND 30-12 51111A | 133.33 | 30 | 12 | 5V | Yes | -40 to 125°C |
GXN AND 30-12 50011A | 66.67 | 30 | 12 | 5V | Yes | -40 to 125°C |
GXN AND 40-16 30111A | 33 | 40 | 16 | 3.3V | Yes | -40 to 125°C |
GXN AND 40-16 50011A | 50 | 40 | 16 | 5V | Yes | -40 to 125°C |
GXN AND 50-20 50111A | 40 | 50 | 20 | 5V | Yes | -40 to 125°C |
40 | 50 | 20 | 5V | Yes | -40 to 125°C | |
GXN AND 50-20 51111A | 80 | 50 | 20 | 5V | Yes | -40 to 125°C |
GXN AND 66-26 50011A | 30.3 | 66 | 26 | 5V | Yes | -40 to 125°C |
GXN AND 66-26 50111A | 30.3 | 66 | 26 | 5V | Yes | -40 to 125°C |
GXN AND 66-26 30011A | 20 | 66 | 26 | 3.3V | Yes | -40 to 125°C |
GXN AND 66-26 30111A | 20 | 66 | 26 | 3.3V | Yes | -40 to 125°C |
GXN AND 80-32 50011A | 25 | 80 | 32 | 5V | Yes | -40 to 125°C |
GXN AND 100-40 50011A | 20 | 100 | 40 | 5V | Yes | -40 to 125°C |
GXN AND 100-40 50111A | 20 | 100 | 40 | 5V | Yes | -40 to 125°C |
GXN Series
STANDARDS & CERTIFICATES
| GXN Series |
|---|
| UL62638 |
| UL62368 |
| EN62368 |
Download our Current Sensor IC Whitepaper
Explore the world of integrated current sensors with our comprehensive whitepaper.
As electronics become more powerful and compact, isolated current sensors offer a solution for accurate, reliable current sensing in space-constrained applications.
This guide provides an in-depth look into the efficient and safe applications of these sensors, reflecting LEM's commitment to innovation and sustainability.
