The GXS Series is a LEM current sensor IC solution engineered for precise measurement of both AC and DC currents in industrial and automotive settings.
This sensor is designed to reject interference from external fields in noisy environments.
Featuring galvanic isolation and advanced signal conditioning, the device delivers accurate current sensing through the primary conductor. The primary conductor (pins 1 and 4) exhibits a relatively low electrical resistance of 1.2 m?, ensuring efficiency with minimal power loss.
The GXS Series is capable of measuring currents ranging from 5A to 60A up to 125°C.

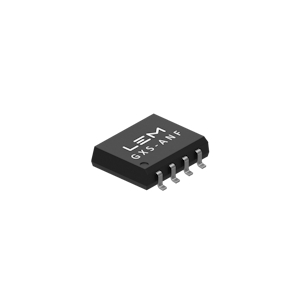

GXS ANF
Key features
- Open loop multi-range current sensor: 5-60A
- Low electrical resistance: 1.2 m?
- Supply voltage: 5V or 3.3 V
- Ratiometric output & Fixed output
- High bandwidth: 400kHz
- 1.5us response time
- Galvanic separation between primary and secondary with 4mm of dCI of and 4mm of dCp
- Withstand isolation voltage (VISO): 3000Vrms
- Working Voltage for Basic Isolation: 600Vdc/424Vrms
- Maximum surge isolation withstands voltage (VIOSM): 6kV
- CMTI > 100V/ns
- Working Temperature: -40°C ~ 125°C
Applications
- Solar System
- Servo and Drive
- Automation
- Industrial power supply
- Motor control
- Automotive On Board Charger
- DCDC
- OBC/DC-DC/PTC Heater
- Charging pile
- Power distribution
TECHNICAL DOCUMENTATION
GXS ANF AT A GLANCE
Product name | Nominal | Current | Nominal | Supply Voltage [Uc] | Ratiometric | Temp. |
|---|---|---|---|---|---|---|
GXS ANF 5-2 30001A | 264 | 5 | 2 | 3,3V | Yes | -40 to 125°C |
GXS ANF 5-2 50101A | 400 | 5 | 2 | 5V | Yes | -40 to 125°C |
GXS ANF 10-4 51101A | 400 | 10 | 4 | 5V | Yes | -40 to 125°C |
200 | 10 | 4 | 5V | Yes | -40 to 125°C | |
GXS ANF 10-4 30101A | 132 | 10 | 4 | 3.3V | Yes | -40 to 125°C |
GXS ANF 10-4 31101A | 264 | 10 | 4 | 3.3V | Yes | -40 to 125°C |
GXS ANF 10-4 50001A | 200 | 10 | 4 | 5V | Yes | -40 to 125°C |
100 | 20 | 8 | 5V | Yes | -40 to 125°C | |
200 | 20 | 8 | 5V | Yes | -40 to 125°C | |
GXS ANF 20-8 50001A | 100 | 20 | 8 | 5V | Yes | -40 to 125°C |
GXS ANF 20-8 30101A | 66 | 20 | 8 | 3.3V | Yes | -40 to 125°C |
GXS ANF 20-8 30001A | 66 | 20 | 8 | 3.3V | Yes | -40 to 125°C |
80 | 25 | 10 | 5V | Yes | -40 to 125°C | |
GXS ANF 25-10 50101A | 80 | 25 | 10 | 5V | Yes | -40 to 125°C |
GXS ANF 30-12 30101A | 44 | 30 | 12 | 3.3V | Yes | -40 to 125°C |
GXS ANF 30-12 50101A | 66.67 | 30 | 12 | 5V | Yes | -40 to 125°C |
GXS ANF 30-12 50001A | 66.67 | 30 | 12 | 5V | Yes | -40 to 125°C |
GXS ANF 30-12 51101A | 133.3 | 30 | 12 | 5V | Yes | -40 to 125°C |
GXS ANF 30-12 30001A | 44 | 30 | 12 | 3.3V | Yes | -40 to 125°C |
GXS ANF 40-16 30101A | 33 | 40 | 16 | 3.3V | Yes | -40 to 125°C |
GXS ANF 40-16 50101A | 50 | 40 | 16 | 5V | Yes | -40 to 125°C |
40 | 50 | 20 | 5V | Yes | -40 to 125°C | |
GXS ANF 50-20 50101A | 40 | 50 | 20 | 5V | Yes | -40 to 125°C |
GXS ANF 50-20 51001A | 80 | 50 | 20 | 5V | Yes | -40 to 125°C |
GXS ANF 50-20 30101A | 26.4 | 50 | 20 | 3.3V | Yes | -40 to 125°C |
GXS Series
STANDARDS & CERTIFICATES
| GXS Series |
|---|
| UL62368 |
| EN62368 |
