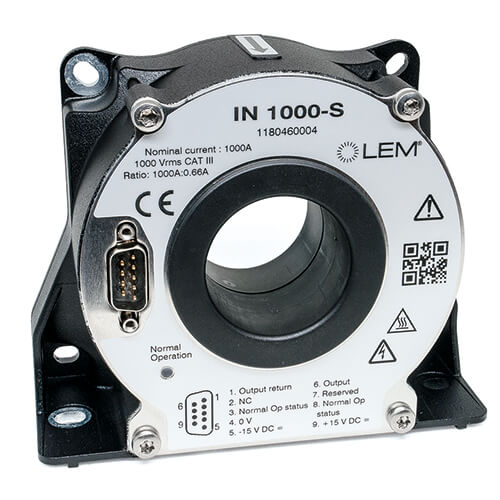

IN 1000-S
LEM expands its range of high accuracy low noise level current sensor to 1000 A nominal, over a wide temperature range
IN 1000-S
Please find here the product page
?
Main characteristics:
- Ultra-high accuracy
- Patented fluxgate technology
- Nominal AC & DC current measurement of 1000 A
- Excellent linearity, better up to 3 ppm over temperature range
- Very low offset over temperature range up to 19.5 ppm
- Low noise level, less than 34 ppm peak-peak
- One compact package
Features:
- Electrostatic shield between primary and secondary circuit
- Power supply +/- 15 V
- Operating temperature range from -40 to +85°C
- D-Sub 9 male interface output
- Current output
- Flat or vertical panel mounting
- Additional output indicating the transducer state
- External LED showing normal operation
- Expected to accommodate round primary conductors up to 38.2 mm diameter
