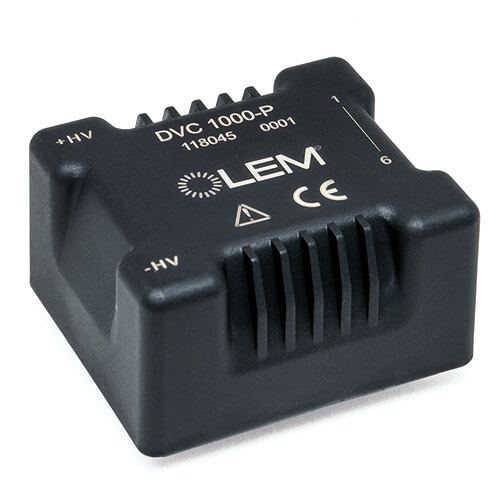

DVC 1000-P
LEM makes the voltage measurement more compact
DVC 1000-P
Please find the DVC 1000-P page here
?
Main characteristics:
- Nominal AC & DC voltage measurement of 1000 V
- Compact: 37.4 cm3 total volume
- Saving in terms of space: 37 x 43 x 23.5 mm
- PCB mounting
- Light: 22 g
- Robust
- Isolation amplifier technology
- High level of overall accuracy over temperature range : 1.5 %
- Fast response time: 10 us at 90%
Features:
- 4.2kV as insulation test voltage
- Power supply + 5 V
- Operating temperature range from -40 to +85°C
- Bandwidth (-3 dB): 47 kHz
- IRIS compliant for traction applications
- Comply with all relevant fire and smoke requirements mandatory in railway applications
- Voltage output
