LV (Voltage)
DC, AC pulse voltage measurements of 100 to 4000 VRMS nominal with galvanic isolation

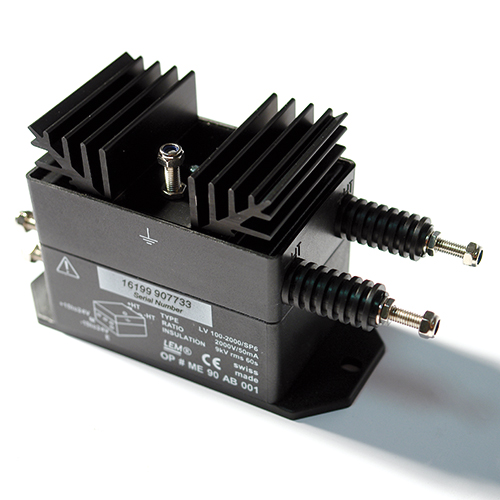

LV Voltage Sensors
The LV sensor family offers versatility for a range of electrical measurements. Among these possibilities, the LV Voltage series specializes in voltage measurement.
Conversely, the LV Voltage sensors are meticulously crafted for the accurate measurement of DC, AC, or pulsed currents, all while ensuring robust galvanic isolation between the primary and secondary circuits.
These voltage sensors are designed for panel mounting and leverage closed-loop Hall effect technology, guaranteeing precision and dependability. This technology renders them exceptionally suitable for a wide spectrum of applications, encompassing both industrial and traction contexts.
LV Voltage – Features and benefits
Features
- Closed loop (compensated) Hall effect sensor
- Insulating plastic case recognized according to UL 94-V0
- Primary resistor – incorporated within the housing
Main characteristics
- Excellent accuracy
- Very good linearity
- Low temperature drift
- Optimized delay time
- Wide frequency bandwidth
- High immunity to external interference
- No insertion losses
Typical applications
The LV Voltage sensors are designed for industrial applications such as:
- AC variable speed drives and servo motor drives
- Static converters for DC motor drives
- Battery supplied applications?
- Uninterruptible Power Supplies (UPS)
- Power supplies for welding applications
Traction is also one of the key application areas for LV Voltage, on fixed installations and onboard trains and locomotives:?
- Single or three phase inverters
- Propulsion and braking choppers
- Propulsion converters
- Auxiliary converters
- Battery chargers
?
LEM LV Voltage – Download & Technical Characteristic
| Product | Document | Primary nominal RMS voltage | Supply Voltage range | Op. Temperature |
|---|---|---|---|---|
| LV 100-100 | 100 V | 15 to 15 | 0 to 70 °C | |
| LV 25-200 | 200 V | 15 to 12 | -25 to 70 °C | |
| LV 100-400 | Datasheet | 400 V | 24 to 15 | 0 to 70?°C |
| LV 25-400 | Datasheet 3D |
400 V | 15 to 12 | -25 to 70 °C |
| LV 100-500 | Datasheet | 500 V | 15 to 15 | 0 to 70 °C |
| LV 100-500/SP6 | Datasheet | 500 V | 24 to 15 | -40 to 70 °C |
| LV 100-600 | Datasheet | 600 V | 15 to 15 | 0 to 70 °C |
| LV 100-600/SP6 | Datasheet | 600 V | 24 to 15 | -40 to 75 °C |
| LV 25-600 | Datasheet 3D |
600 V | 15 to 12 | -25 to 70 °C |
| LV 25-600/SP2 | Datasheet | 600 V | 15 to 12 | -30 to 70 °C |
| LV 100-750/SP4 | Datasheet | 750 V | 24 to 15 | -40 to 70 °C |
| LV 100-750/SP8 | Datasheet | 750 V | 15 to 15 | -40 to 80 °C |
| LV 100-800 | Datasheet | 800 V | 15 to 15 | 0 to 70 °C |
| LV 25-800 | Datasheet | 800 V | 15 to 12 | -25 to 70 °C |
| LV 100-1000 | Datasheet 3D |
800 V | 15 to 15 | 0 to 70 °C |
| LV 100-1000/SP13 | Datasheet 3D |
1000 V | 33 to 16 | -25 to 70 °C |
| LV 100-1000/SP16 | Datasheet 3D |
1000 V | 24 to 15 | -25 to 70 °C |
| LV 100-1000/SP9 | Datasheet 3D |
1000 V | 24 to 15 | -40 to 70 °C |
| LV 25-1000 | Datasheet | 1000 V | 15 to 12 | -25 to 70 °C |
| LV 25-1000/SP1 | Datasheet 3D |
1000 V | 15 to 12 | -30 to 70 °C |
| LV 25-1000/SP3 | Datasheet 3D |
1000 V | 24 to 24 | -40 to 85 °C |
| LV 100-1200 | Datasheet | 1200 V | 15 to 15 | 0 to 70 °C |
| LV 25-1200 | Datasheet 3D |
1200 V | 15 to 12 | -25 to 70 °C |
| LV 100-1500 | Datasheet | 1500 V | 15 to 15 | 0 to 70 °C |
| LV 100-1500/SP3 | Datasheet 3D |
1500 V | 24 to 15 | -40 to 85 °C |
| LV 100-2000 | Datasheet 3D |
2000 V | 15 to 15 | -40 to 85 °C |
| LV 100-2000/SP15 | Datasheet | 2000 V | 24 to 15 | -40 to 75 °C |
| LV 100-2000/SP17 | Datasheet | 2000 V | 24 to 15 | -25 to 80 °C |
| LV 100-2000/SP18 | Datasheet 3D |
2000 V | 24 to 15 | -40 to 70 °C |
| LV 100-2000/SP5 | Datasheet 3D |
2000 V | 24 to 15 | -25 to 70 °C |
| LV 100-2000/SP6 | Datasheet 3D |
2000 V | 24 to 15 | -40 to 85 °C |
| LV 100-3000/SP12 | Datasheet 3D |
3000 V | 24 to 15 | -40 to 70 °C |
| LV 100-3000/SP3 | Datasheet | 3000 V | 24 to 15 | -25 to 70 °C |
| LV 100-3500 | Datasheet | 3500 V | 15 to 15 | 0 to 70 °C |
| LV 100-3500/SP2 | Datasheet 3D |
3600 V | 24 to 24 | -25 to 70 °C |
| LV 100-4000 | Datasheet 3D |
4000 V | 15 to 15 | 0 to 70 °C |
| LV 100-4000/SP2 | Datasheet | 4000 V | 24 to 15 | -25 to 70 °C |
| LV 100-4000/SP6 | Datasheet 3D |
4000 V | 24 to 15 | -40 to 85 °C |
| LV 100-5000/SP1 | Datasheet 3D |
5000 V | 24 to 15 | -40 to 85 °C |
