IN-->400
Ultra Accuracy - Low noise over wide operating temperature range. Fluxgate technology reinvented (LEM patent). DC, AC pulse currents' measurements of 500, 1000 and 2000 A nominal with galvanic isolation. Excellent linearity over temperature range. Very low offset over temperature range. Low noise level. One compact package. Electrostatic shield between primary and secondary circuit. Power supply +/- 15 V. -40 to +85°C. D-Sub 9 male interface output. Flat or vertical panel mounting.

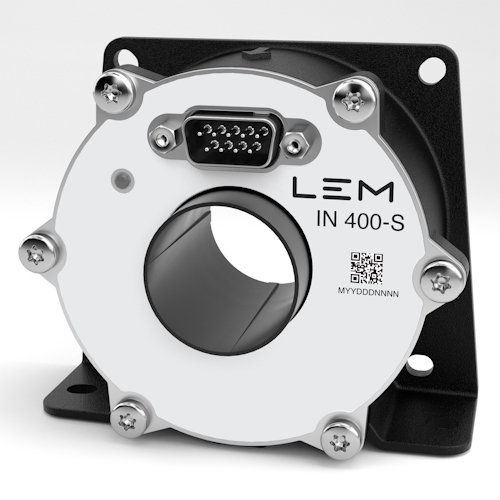

IN 400-S
400A nominal, 0.3 ppm linearity and max 8 ppm offset over the temperature range, bandwidth from DC to 0.8 MHz, really good immunity from external fields, low noise 38 ppm peak-peak
- Series
-
IN-->400
- Measurement
-
Current
- Nominal Value
-
400 A
- Measuring Range
-
600 A
- Second. Nominal Signal
-
Current
- Second. Nominal Signal Value
- Instantaneous 266.667 mA
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Bipolar
- Supply Voltage Range
- 15 - 15 V
- Accuracy
- 0.001 %
- Op. Temperature
- -40 °C / 85 °C
- Technology
-
Closed loop Fluxgate IN type
- Mounting
-
Panel
- Applications
-
High Precision
Relative information
Product of the same series
IN 200-S
200A nominal, 0.6 ppm linearity and max 10 ppm offset over the temperature range, bandwidth from DC to 1.1 MHz, really good immunity from external fields, low noise 50 ppm peak-peak
IN 100-S
100A nominal, 0.8 ppm linearity and max 15 ppm offset over the temperature range, bandwidth from DC to 2.0 MHz, really good immunity from external fields, low noise 50 ppm peak-peak
