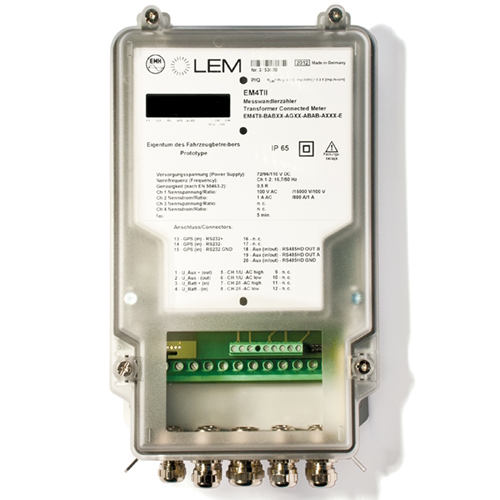

EM4TII
Energy Meter for On-Board Traction applications. To be ,used both in new multi-system locomotives and for retrofitting to all types of electrical rail vehicles already in operation.,Supply systems 25 kV 50/60 Hz and 15 kV 16.7 Hz, or either 600 V DC, 750 V DC, 1.5 kV DC or 3 kV DC. A system change is detected by the energy meter and stored in the load profile ,EM4T complies to all the requirements of EN 50463-x & EN 50155 standards for metering and On-Board use, and thus satisfies the requirements of EC Decision 2011/291/EC (TSI “Locomotives and passenger rolling stock”).
Model details
EM4TII AC-MS DC-MS +XPS 110VDC, RS232
- Series
-
EM4TII
- Measurement
-
Energy
- Nominal Value
-
800 V
- Measuring Range
-
800 V
- Second. Nominal Signal
-
Other
- Second. Nominal Signal Value
- Serial Communication
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Unipolar
- Supply Voltage Range
- 72 - 110 V
- Op. Temperature
- -40 °C / 75 °C
- Technology
-
Energy Meter
- Mounting
-
Panel
- Applications
-
EV ChargersTraction
FRONT
BACK
LEFT
RIGHT
Download
