FHS AH
Coreless, Contact-less, open loop surface mounted field sensor based on Hall effect principle.
Model details

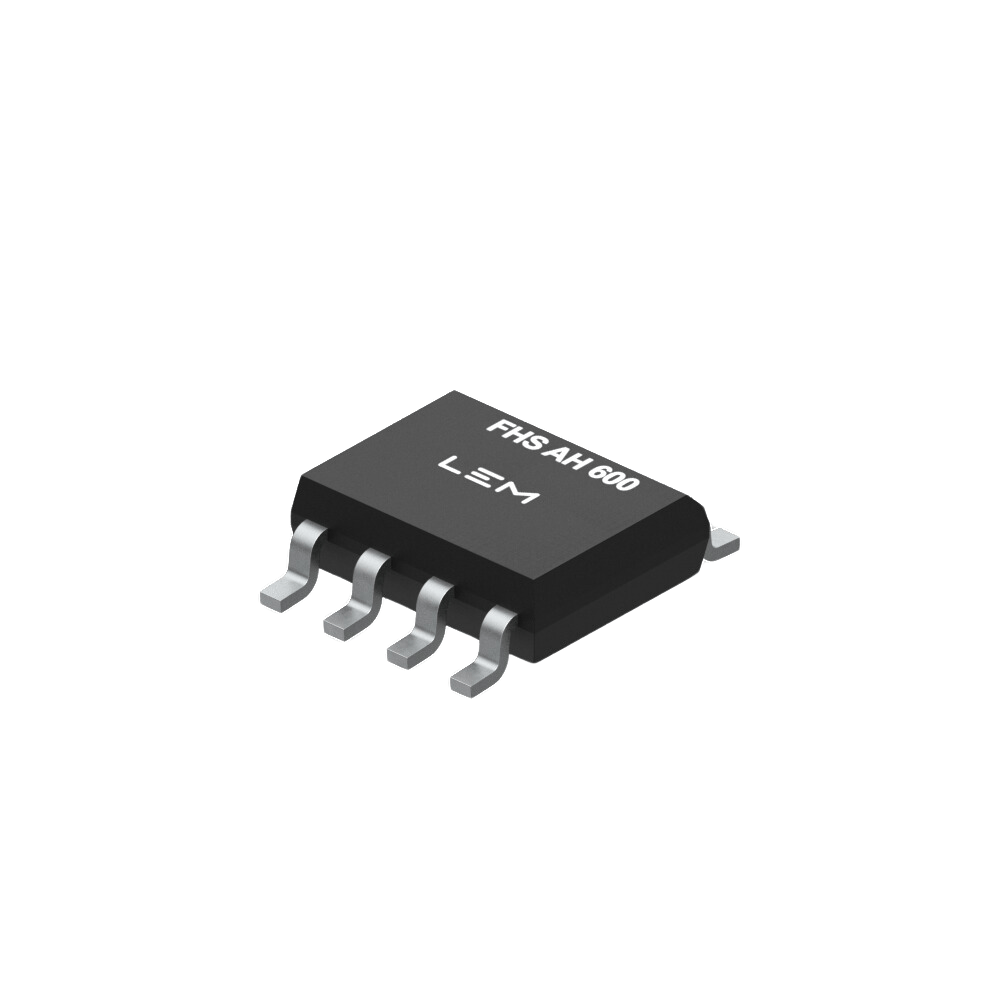

FHS AH 600
Coreless Field sensor, 20A, 2% Accuracy, 5V Power supply, Over Current Detection
- Series
-
FHS AH
- Measurement
-
Current
- Nominal Value
-
20 A
- Measuring Range
-
50 A
- Second. Nominal Signal
-
Voltage
- Second. Nominal Signal Value
- Instantaneous 2.5 +/- 2 V
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Unipolar
- Supply Voltage Range
- 5 - 5 V
- Accuracy
- 2 %
- Op. Temperature
- -40 °C / 125 °C
- Technology
-
Open loop Hall effect
- Mounting
-
PCB
- Applications
-
AutomationDrives
