High performance, cost effective, multirange current?transducers for DC, AC and pulse currents measurements of 20 ARMS, 30 ARMS, 37.5 ARMS, 40 ARMS, 60 ARMS, 75 ARMS, 80 ARMS, 120 ARMS, 150 ARMS with galvanic isolation. Through hole PCB mounting with integrated 4 primary conductor pins. Overcurrent detection set @ 2.97 x Ipn?on a dedicated pin. Digital output: 2 wire CMOS or 2 wire RS422 Manchester or 2 wires LVDS Manchester or 4 wire LVDS or 4 wire RS422. Small design (20 (W) x 41 (L) x 27 (H)). Creepage & clearance distances: 8 mm + CTI 600. Single supply 0, +5 V. Operating temperature range: -40°C to +105°C.

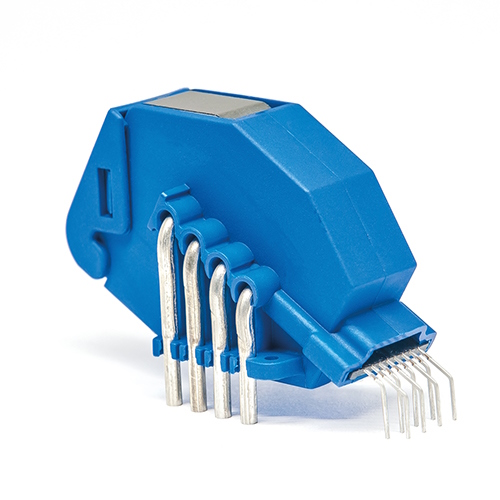

HO 120-NPW-0000
30 ARMS or 60 ARMS or 120 ARMS nominal due to the multirange primary conductor
- Series
-
HOxx-NPW
- Measurement
-
Current
- Nominal Value
-
120 A
- Measuring Range
-
300 A
- Second. Nominal Signal
-
Other
- Second. Nominal Signal Value
- Instantaneous Pulse Density Modulation (PDM)
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Unipolar
- Supply Voltage Range
- 5 - 5 V
- Accuracy
- 1.25 %
- Op. Temperature
- -40 °C / 105 °C
- Technology
-
Open loop Hall effect
- Mounting
-
PCB
- Applications
-
AutomationDrivesPower SuppliesRenewable EnergiesWelding
Relative information
Product of the same series
HO 150-NPW-0000
37.5 ARMS or 75 ARMS or 150 ARMS nominal due to the multirange primary conductor
HO 80-NPW-0000
20 ARMS or 40 ARMS or 80 ARMS nominal due to the multirange primary conductor
