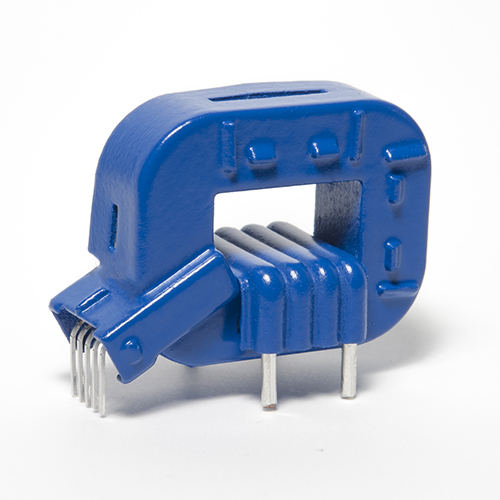

HOxx-P-
7 ranges: 60 ARMS, 100 ARMS, 120 ARMS, 150 ARMS, 180 ARMS,?240 ARMS, 250 ARMS. Overcurrent detection on a dedicated pin, Short response time, Access to voltage reference, Low offset and gain drift, Measuring range up to 2.5 x IPN, Small design (22 (W) x 43 (L) x 30 (H)), High accuracy at 25°C: 1% of IPN & at 105°C: 4.6% of IPN, Creepage & clearance distances: 8 mm + CTI 600
HO 60-P-0100
60 ARMS, Overcurrent detection set @ 2.93 x IPN?on a dedicated pin,Short response time: 3.5 μs,Access to voltage reference 2.5 V
- Series
-
HOxx-P-
- Measurement
-
Current
- Nominal Value
-
60 A
- Measuring Range
-
150 A
- Second. Nominal Signal
-
Voltage
- Second. Nominal Signal Value
- Instantaneous 2.5 +/- 0.8 V
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Unipolar
- Supply Voltage Range
- 5 - 5 V
- Accuracy
- 1.25 %
- Op. Temperature
- -40 °C / 105 °C
- Technology
-
Open loop Hall effect
- Mounting
-
PCB
- Applications
-
DrivesPower SuppliesRenewable EnergiesWelding
