ITN6&900
Made for high accuracy. DC, AC pulse currents' measurements from 600 to 1000 ADC nominal with galvanic isolation. Excellent linearity from 1 to 1.5 ppm. High resolution. Initial offset from 10 to 15 ppm. Very low offset drift from 0.3 to 0.5 ppm/K. Overall accuracy @ Ipn @ +25°C: < +/- 0.002 %. Wide frequency bandwidth up to 300 kHz (+/- 3 dB). Fluxgate technology. Electrostatic shield between primary and secondary circuit. Power supply +/-15 Volt. Operating temperature range from +10 to +50°C. D-Sub 9 male interface output. Current output. Really quick response time (<250 ns).
Model details

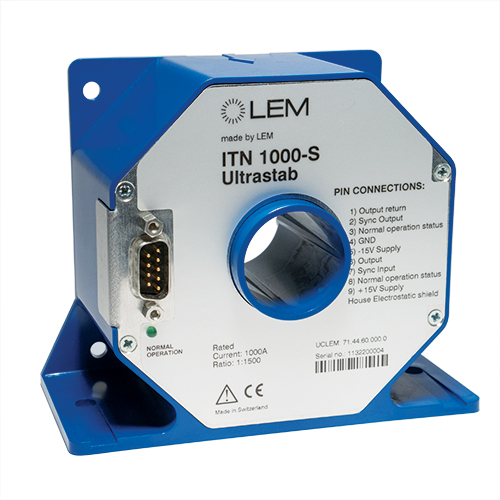

ITN 1000-S ULTRASTAB
High accurate current transducer. 1000 ADC nominal
- Series
-
ITN6&900
- Measurement
-
Current
- Nominal Value
-
1000 A
- Measuring Range
-
1000 A
- Second. Nominal Signal
-
Current
- Second. Nominal Signal Value
- Instantaneous 667 mA
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Bipolar
- Supply Voltage Range
- 15 - 15 V
- Accuracy
- 0.00115 %
- Op. Temperature
- 10 °C / 50 °C
- Technology
-
Closed loop Fluxgate IT type
- Mounting
-
Panel
- Applications
-
High Precision
FRONT
BACK
LEFT
RIGHT
