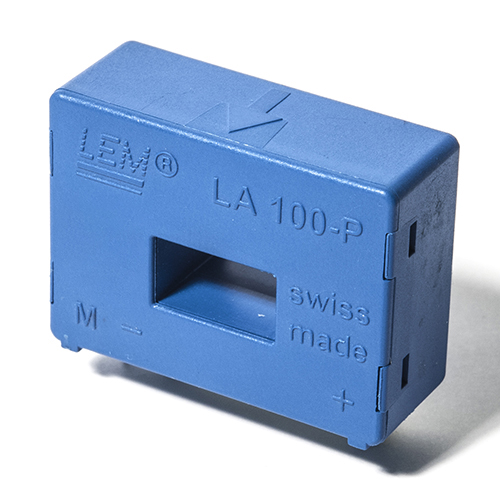

LA100P
Closed Loop Hall effect. DC, AC pulse currents' measurements of 100 ARMS nominal with galvanic isolation.To be PCB mounted. Aperture 12.7 x 7 mm for the primary conductor crossing. Excellent accuracy, good response time, -40°C to + 85°C.
Model details
LA 100-TP
100 ARMS nominal., Primary busbar integrated
- Series
-
LA100P
- Measurement
-
Current
- Nominal Value
-
100 A
- Measuring Range
-
150 A
- Second. Nominal Signal
-
Current
- Second. Nominal Signal Value
- Instantaneous 50 mA
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Bipolar
- Supply Voltage Range
- 12 - 15 V
- Accuracy
- 0.45 %
- Op. Temperature
- -40 °C / 85 °C
- Technology
-
Closed loop Hall effect
- Mounting
-
PCB
- Applications
-
DrivesPower SuppliesRenewable EnergiesWelding
FRONT
BACK
LEFT
RIGHT
