LA200-500SD
Closed Loop Hall effect. DC, AC pulse currents' measurements of 200 ARMS nominal with galvanic isolation. Split-core- To be panel mounted. Aperture 67 x 67 mm for the primary conductor crossing. Excellent accuracy, good response time, -30°C to + 70°C.
Model details

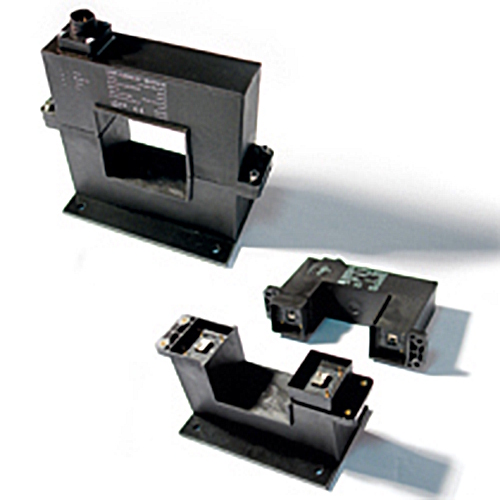

LA 200-SD/SP3
200 ARMS nominal. Split core, Turns ratio 1/5000, -30°C to +70°C, Output on connector AMP CPC, Base fastening.
- Series
-
LA200-500SD
- Measurement
-
Current
- Nominal Value
-
200 A
- Measuring Range
-
500 A
- Second. Nominal Signal
-
Current
- Second. Nominal Signal Value
- Instantaneous 40 mA
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Bipolar
- Supply Voltage Range
- 24 - 24 V
- Accuracy
- 1 %
- Op. Temperature
- -30 °C / 70 °C
- Technology
-
Closed loop Hall effect
- Mounting
-
Panel
- Applications
-
Traction
