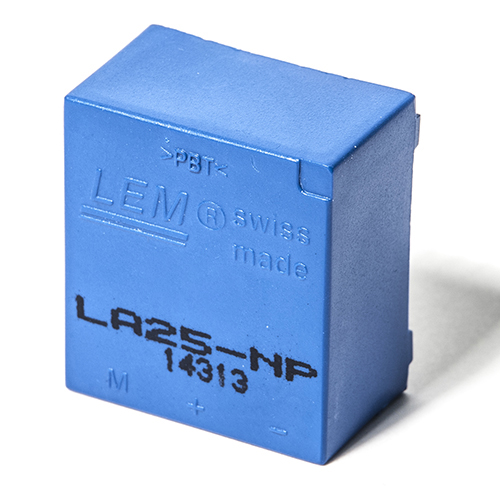

LA25NP
Closed Loop Hall effect. DC, AC pulse currents' measurements of 5, 6, 8, 12 & 25 ARMS nominal with galvanic isolation. Multi-range. To be PCB mounted (Primary and secondary). Integrated primary conductor. Excellent accuracy, good response time, -40°C to + 85°C.
LA 25-NP/SP9
1.5 ARMS nominal, Not multi-range, Turns ratio 16/1000, 0...+70°C
- Series
-
LA25NP
- Measurement
-
Current
- Nominal Value
-
1.5 A
- Measuring Range
-
2.2 A
- Second. Nominal Signal
-
Current
- Second. Nominal Signal Value
- Instantaneous 24 mA
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Bipolar
- Supply Voltage Range
- 15 - 15 V
- Accuracy
- 0.5 %
- Op. Temperature
- 70 °C
- Technology
-
Closed loop Hall effect
- Mounting
-
PCB
- Applications
-
DrivesPower SuppliesRenewable EnergiesTracksideWelding
Relative information
Product of the same series
LA 25-NP/SP8
2 ARMS nominal, Not multi-range, Turns ratio 12/1000, 0...+70°C
LA 25-NP/SP7
2.5 ARMS nominal, Not multi-range, Turns ratio 10/1000, 0...+70°C.
LA 25-NP/SP34
1.5 ARMS nominal, Not multi-range, Turns ratio 16/1000, -40°C to +85°C
LA 25-NP/SP25
Multirange 5,6, 8, 12 and 25 A nominal according to PCB design, -40°C to +85°C, 2.5 kVRMS as test isolation voltage (4 kVDC/5mn)
LA 25-NP/SP14
0.25 ARMS nominal, Not multi-range, Turns ratio 100/1000, -10°C to +70°C.
LA 25-NP/SP13
0.5 ARMS nominal, Not multi-range, Turns ratio 50/1000, -40°C to +70°C.
LA 25-NP/SP11
1 ARMS nominal, Not multi-range, Turns ratio 25/1000
LA 25-NP
Multirange 5,6, 8, 12 and 25 ARMS nominal according to PCB design
