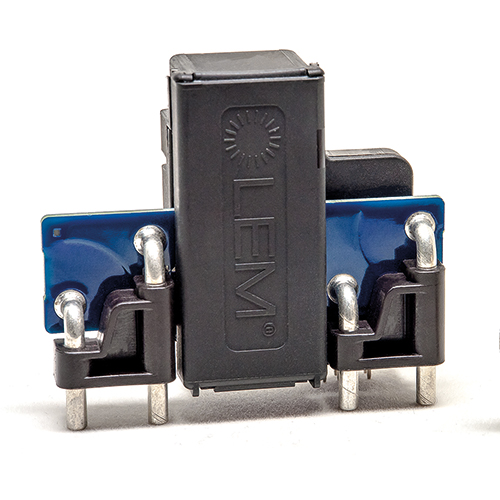

LDSR-TP
Earth leakage current measurement for solar application, For single phase measurement with primary conductors integrated, Single supplied (+5V), PCB mounting, Small currents measurement from 0.3 ARMS?nominal, Operating temperature range: -40 to +105°C
Model details
LDSR 0.3-TP/SP1
0.3 ARMS nominal. Expected for single phase system
- Series
-
LDSR-TP
- Measurement
-
Current
- Nominal Value
-
0.3 A
- Measuring Range
-
0.9 A
- Second. Nominal Signal
-
Voltage
- Second. Nominal Signal Value
- Instantaneous 2.5 +/- 0.666 V
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Unipolar
- Supply Voltage Range
- 5 - 5 V
- Accuracy
- 13.3 %
- Op. Temperature
- -40 °C / 105 °C
- Technology
-
Closed loop Hall effect
- Mounting
-
PCB
- Applications
-
Renewable Energies
