LT100S&T
Closed Loop Hall effect. DC, AC pulse currents' measurements of 100 ARMS nominal with galvanic isolation. Compact design. To be panel mounted. Aperture 15 mm diameter for the primary conductor crossing. Excellent accuracy, good response time, Current output, -40°C to + 70°C. Dual supply +/- 12 to +/- 18V.
Model details

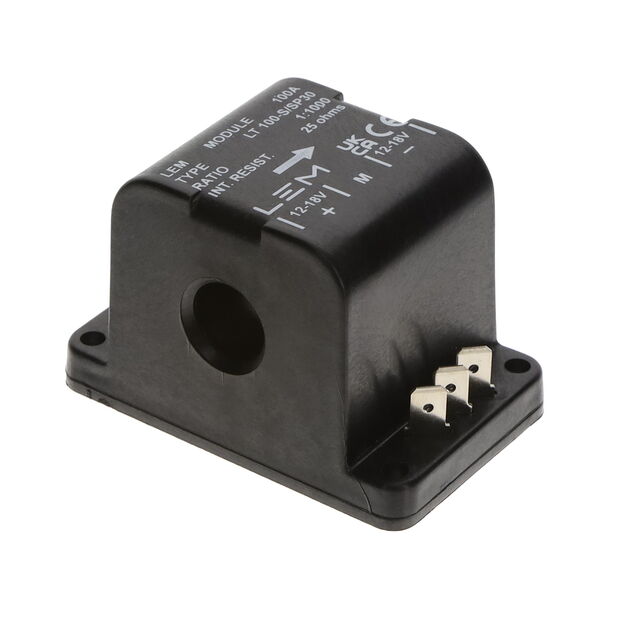

LT 100-S/SP30
100 ARMS nominal, For traction
- Series
-
LT100S&T
- Measurement
-
Current
- Nominal Value
-
100 A
- Measuring Range
-
200 A
- Second. Nominal Signal
-
Current
- Second. Nominal Signal Value
- Instantaneous 100 mA
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Bipolar
- Supply Voltage Range
- 12 - 18 V
- Accuracy
- 0.5 %
- Op. Temperature
- -40 °C / 70 °C
- Technology
-
Closed loop Hall effect
- Mounting
-
Panel
- Applications
-
Traction
