LWSR
Model details

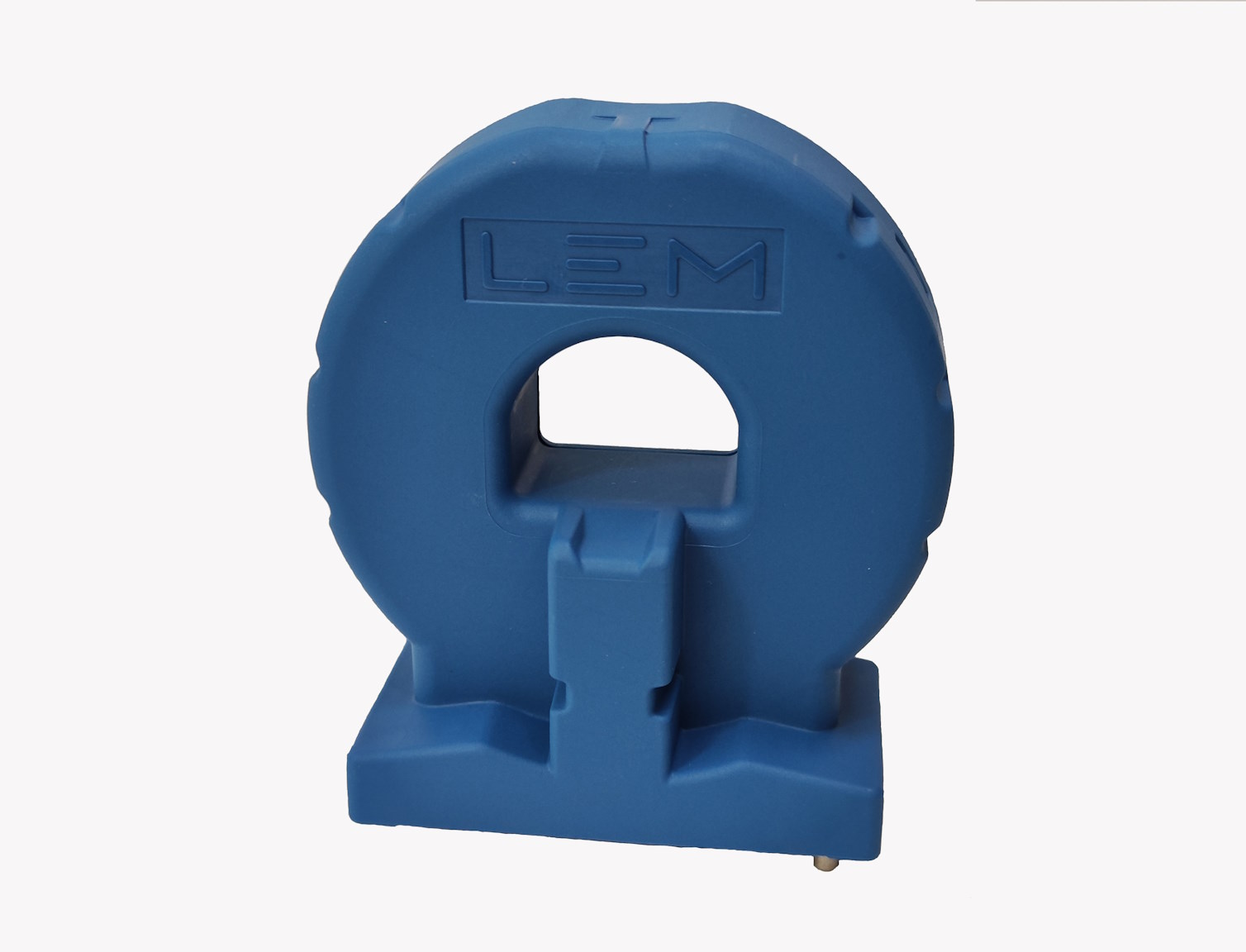

LWSR 250-P
250 A nominal, 380 A peak measurement, -40°C to + 105°C, ?Reference access, Designed with an aperture to insert the primary conductors
- Series
-
LWSR
- Measurement
-
Current
- Nominal Value
-
250 A
- Measuring Range
-
380 A
- Second. Nominal Signal
-
Voltage
- Second. Nominal Signal Value
- Instantaneous 2.5 +/- 0.781 V
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Unipolar
- Accuracy
- 0.83 %
- Op. Temperature
- -40 °C / 105 °C
- Technology
-
Closed loop Hall effect
- Mounting
-
PCB
- Applications
-
DrivesPower SuppliesRenewable EnergiesWelding
FRONT
BACK
LEFT
RIGHT
