RA
Interference Frequencies Detection. Rogowski technology. Measurement of alternating signals on DC primary currents.
Model details

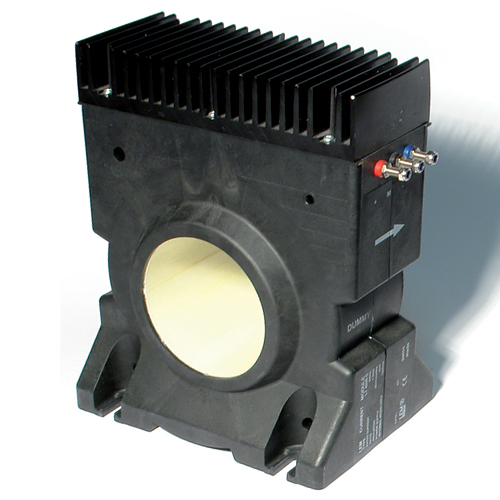

RA 2000-S/SP1
0.1...20 A AC measurement on DC primary current up to 3000 ADC. Bandwidth from 20 to 3000 Hz. LEM does not provide the integrator. -25°C to +70°C, Secondary connections on cable.
- Series
-
RA
- Measurement
-
Current
- Nominal Value
-
3000 A
- Measuring Range
-
3000 A
- Second. Nominal Signal
-
Voltage
- Second. Nominal Signal Value
- Instantaneous V
- Primary Signal
-
AC
- Supply Voltage
-
Self Powered
- Accuracy
- 3 %
- Op. Temperature
- -25 °C / 70 °C
- Technology
-
Rogowski
- Mounting
-
Panel
- Applications
-
Traction
FRONT
BACK
LEFT
RIGHT
