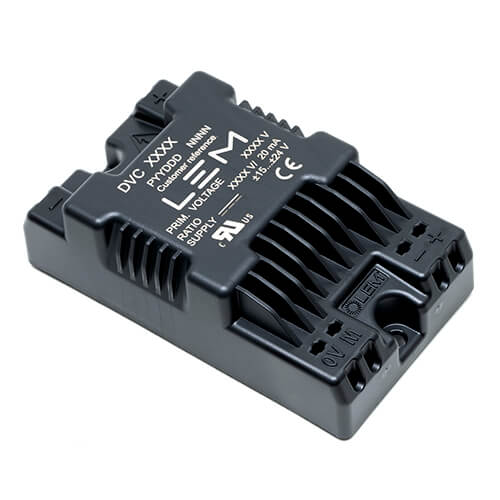

DVC 1000 series
Panel mounted Compactness Voltage measurement with LEM DVC 1000 series
DVC 1000 series
Main characteristics:
- Isolated measurement of nominal AC & DC voltage of 1000 V
- Compact: 131.6 cm3 total volume
- Saving in terms of space: 29 x 51 x 89 mm
- Panel mounting
- Light: 57 g
- Robust
- Isolation amplifier technology
- High level of overall accuracy over temperature range: 1.7 %
- Fast response time: 12 to 17 us at 90%
Features:
- 4.2kV as insulation test voltage
- Power supply +/- 15 to 24 Volt or Unipolar +15 to +24 Volt (DVC -UI series)
- Operating temperature range from -40 to +85°C
- Bandwidth (-3 dB): 35 kHz
- Instantaneous +/- 30 mA current output at +/- 1500 Volt peak: DVC 1000 model
- Instantaneous +/- 10 Volt voltage output at +/- 1500 Volt peak: DVC 1000-B model
- Unipolar instantaneous 4-20 mA current output at 0…+1000 Volt DC: DVC 1000-UI model (Unipolar DC Voltage measurement)
- Rail DIN mounting adaptor as an option
- Meets latest industrial standards as well as IRIS requirements for rail traction applications (EN 45545)
- Comply with all relevant fire and smoke requirements mandatory in railway applications
- Auxiliary converters, Main converters for Light Rail Vehicles, DC substations for Light Rail Vehicles (Voltage regulation), DC Power supply monitoring (24V/110V), EV Charger, Battery storage...
