The GXN AND Series by LEM is a high-performance, integrated current sensor designed for precise AC and DC current measurement in industrial (version A) and automotive (version Q) environments. Featuring advanced ambient field rejection and a temperature compensation algorithm, the GXN_AND delivers reliable accuracy across a wide temperature range. Its low-resistance primary conductor (0.85 mΩ typical) ensures minimal power loss, supporting efficient system operation.Galvanic isolation between primary and secondary sides eliminates the need for additional insulation, reducing system footprint and cost. The GXN_AND Series supports current measurement from 10 to 100 A, with robust insulation and surge protection for demanding applications.

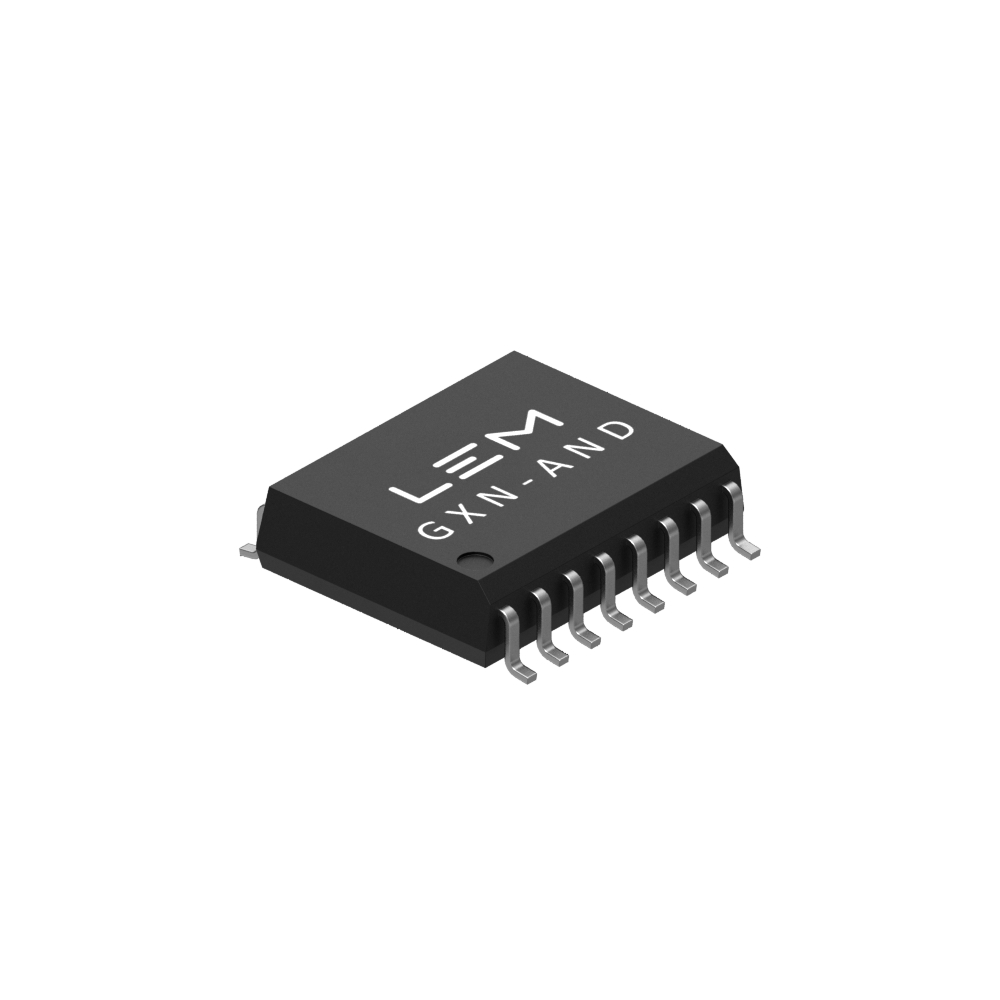

GXN AND 20-08 30111A
Integrated Current Sensor, 8A , 2% Accuracy, 3.3V Power supply, Low Power Loss,Over Current Detection, High Isolation
- 系列
-
GXN AND
- 測量類型
-
電流
- 額定值
-
8 A
- 測量范圍
-
20 A
- 副邊輸出信號
-
電壓
- 副邊輸出信號值
- 瞬時 Vref +/- 1.65 V
- 原邊信號
-
AC + DC
- 工作電壓
-
外部供電 DC 單向
- 工作電壓范圍
- 3 - 3 V
- 精度
- 2 %
- 工作溫度
- -40 °C / 125 °C
- 技術
-
開環霍爾效應
- 安裝
-
PCB
- 應用
-
自動化驅動電動汽車充電器電源可再生能源焊接
